Name: P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

المنزل > المنتجات > تحقيقات اختبار الربيع >

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

5A Current Spring Test Probe,50m Ohm Resistance Pogo Pin,33.35mm Length PCB Testing Pin

50m Ohm Resistance Pogo Pin

33.35mm Length PCB Testing Pin

مكان المنشأ:

الصين

اسم العلامة التجارية:

WINNER

إصدار الشهادات:

ISO9100

اتصل بنا

اطلب اقتباس

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

تفاصيل المنتج

اسم المنتج:

مسبار اختبار الحجم القياسي

الغطاس:

لأنها

برميل:

النحاس

ربيع:

الفولاذ المقاوم للصدأ

توافر:

أحجام مخصصة متوفرة

طلاء:

مطلي بالذهب

موك:

100 قطعة

إبراز:

5A Current Spring Test Probe,50m Ohm Resistance Pogo Pin,33.35mm Length PCB Testing Pin

50m Ohm Resistance Pogo Pin

33.35mm Length PCB Testing Pin

شروط الدفع والشحن

الحد الأدنى لكمية

1 قطعة

الأسعار

999

تفاصيل التغليف

التعبئة المحايدة أو بشعار OEM

وقت التسليم

5-8 أيام عمل

شروط الدفع

خطاب الاعتماد، ويسترن يونيون، تي / تي

القدرة على العرض

100000 لفات شهريا

منتجات ذات صلة

Spring Test Probe P156 H, 100Pcs Spring Loaded Test Pin, 2.36mm Brass Spring Probe with 9 Claws, Industrial Supplies for Testing and Replacement, Durable and Accurate Computer Mac

احصل على أفضل سعر

Spring Test Probes, 100Pcs P125-Q High Accuracy Round Pogo Pins for PCB Board Testing Contact

احصل على أفضل سعر

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

احصل على أفضل سعر

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

احصل على أفضل سعر

اتصل بنا

اتصل الآن

وصف المنتج

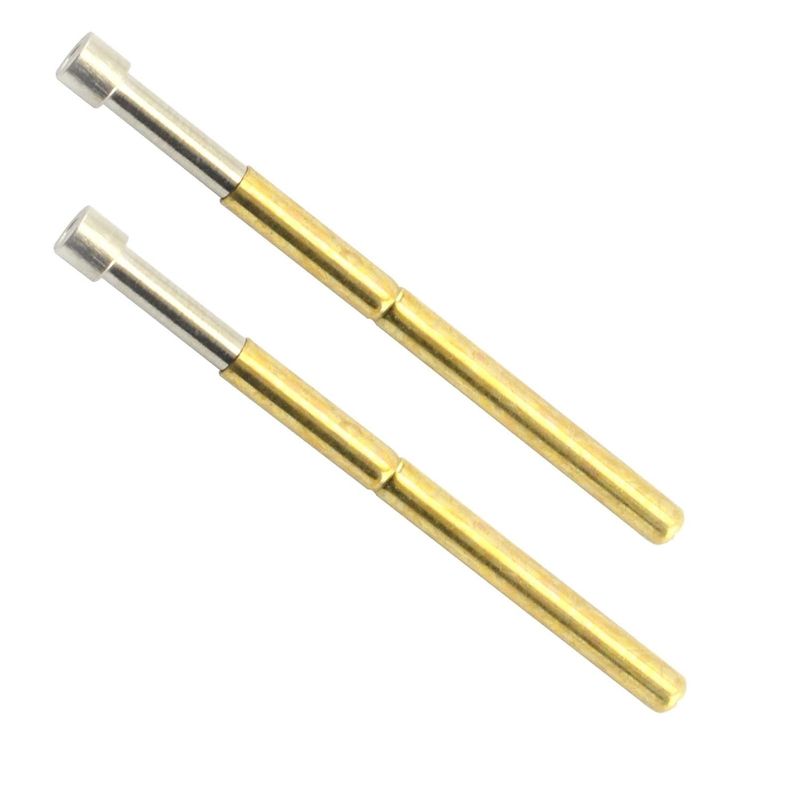

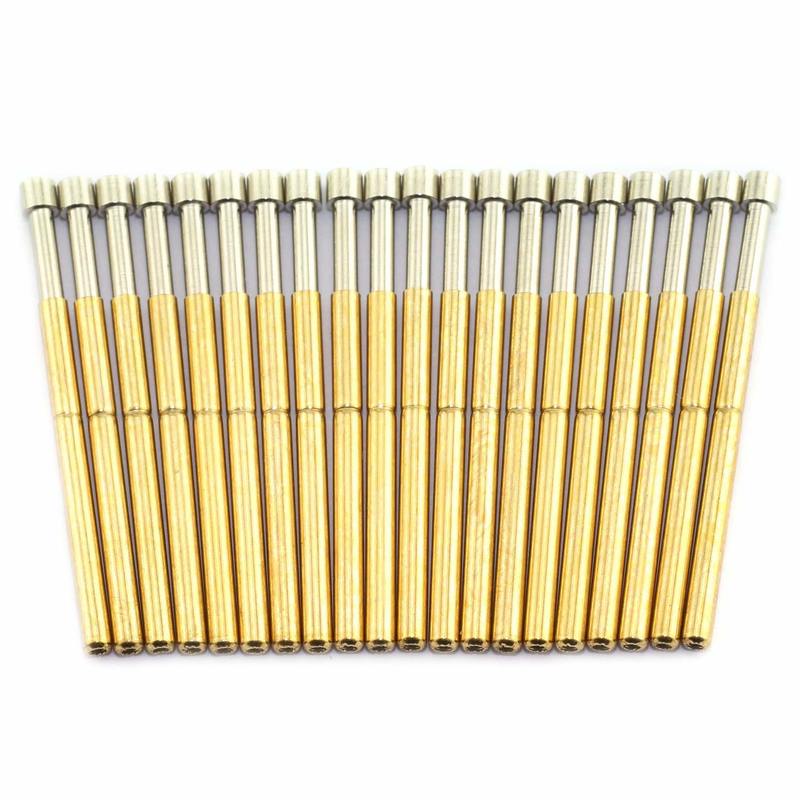

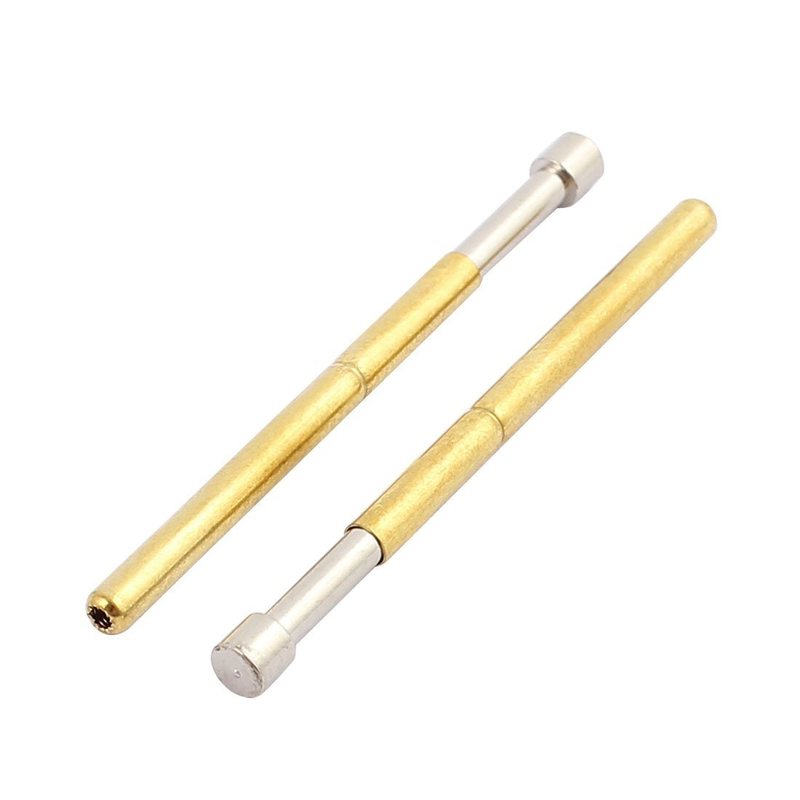

P125-A Spring Test Probe Pogo Pin

High-quality replacement probes for extending the life of your test station with concave tip head design.

Key Features

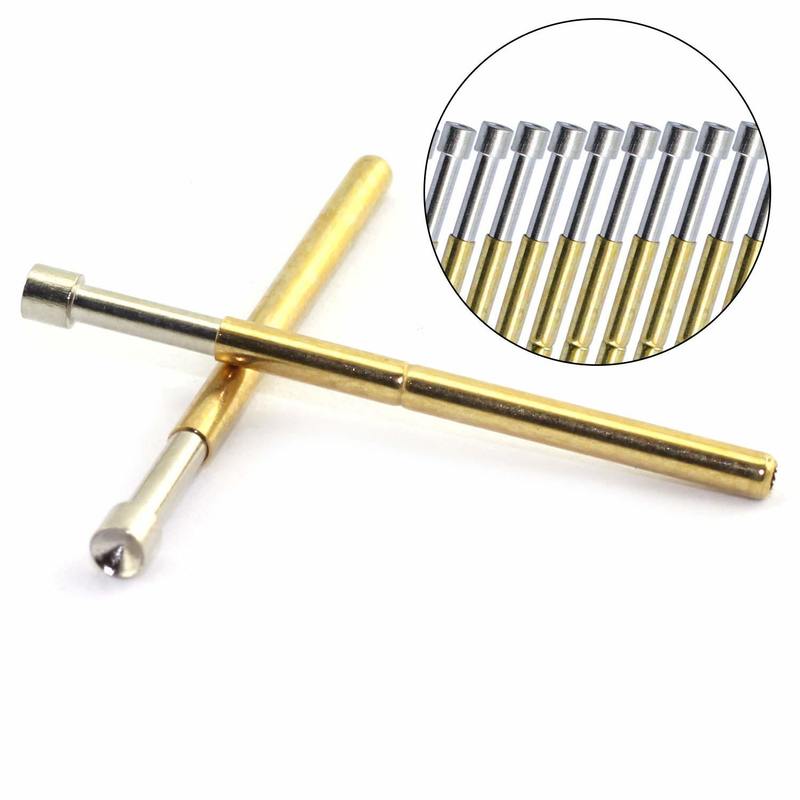

Concave tip head design for precise contact
Premium materials: heat-treated beryllium copper plunger, gold-plated phosphor bronze barrel, and gold-plated stainless steel wire spring
Excellent conductivity and durability for repeated use
Ideal for PCB conductive testing and component access on printed circuit assemblies
Perfect for testing long lead feet, terminals, and wrapping posts

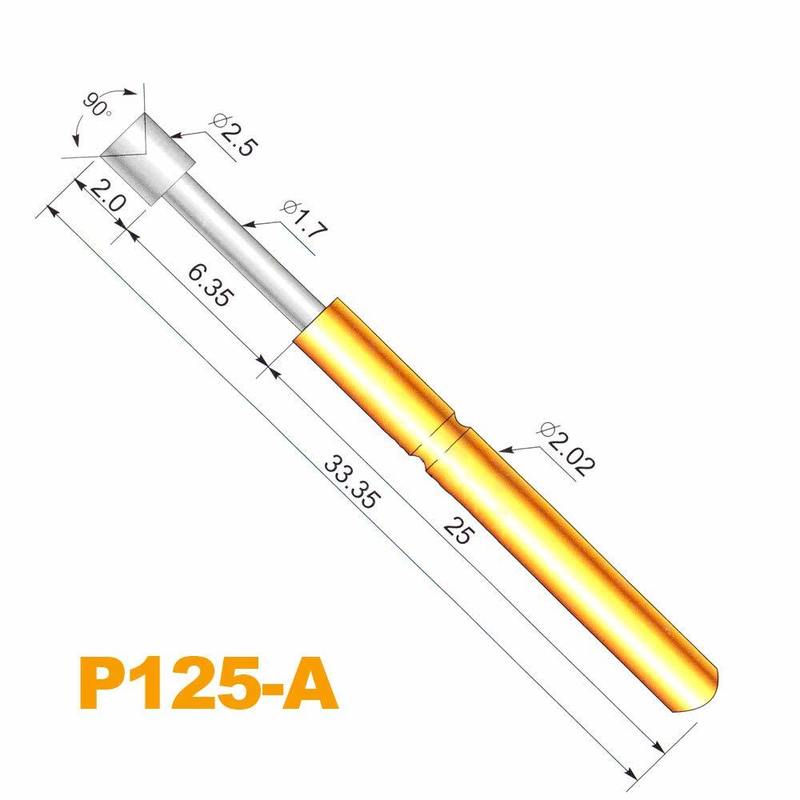

Technical Specifications

Model	P125-A
Head Diameter	2.5mm
Tube Diameter	2.02mm
Shank Diameter	1.7mm
Length	33.35mm
Sheath Diameter	2.36mm
Drill Size	2.4mm
Minimum Test Distance	3.18mm
Full Stroke	6.35mm
Spring Pressure	180g
Current	5A
Resistance	50m Ohm
Color	Gold + Silver

Test Probe Selection Guide

Test probes are available from many manufacturers with similar constraints. When selecting a test probe receptacle, the tip choice is the most critical consideration.

Detailed illustration of test probe components and construction

Various test probe tip types

Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization to meet your specific requirements:

Custom diameters to match your specifications
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
