Gold Plated High Durability Spring Test Probe

Gold Plated High Durability Spring Test Probe

gold plated spring test probe,high durability test probe,spring probe with warranty

high durability test probe

spring probe with warranty

مكان المنشأ:

الصين

اسم العلامة التجارية:

WINNER

إصدار الشهادات:

ISO9100

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
اسم المنتج:
مسبار اختبار الربيع
برميل:
PB، مطلي بالذهب
المكبس السفلي:
BeCu/SK4، مطلي بالذهب
المكبس العلوي:
SK4 (Be Cu)/مطلي بالذهب
ربيع:
SWPB(SUS)/مطلي بالذهب
التوفر:
أحجام مخصصة متوفرة
طلاء:
مطلي بالذهب
التقييم الحالي:
2A
اتصل بالمقاومة:
100 ميغا كحد أقصى
عرض النطاق الترددي:
-0.20 ديسيبل @ 19.6 جيجا هرتز
محاثة:
1.17نH
السعة:
1.45pF
السكتة الدماغية الكاملة:
0.6 مللي متر
السباق المسموح به:
0.5 مللي متر
قوة الربيع:
25 جرامًا عند 0.5 مم
الحياة الميكانيكية تتجاوز:
200k
إبراز:

gold plated spring test probe,high durability test probe,spring probe with warranty

,

high durability test probe

,

spring probe with warranty

شروط الدفع والشحن
الحد الأدنى لكمية
3000pcs
الأسعار
999
تفاصيل التغليف
التعبئة المحايدة أو بشعار OEM
وقت التسليم
5-8 أيام عمل
شروط الدفع
خطاب الاعتماد، ويسترن يونيون، تي / تي
القدرة على العرض
100000 لفات شهريا
وصف المنتج
Gold-Plated Spring Test Probe | High Durability Pogo Pin for Electronic Contact Testing

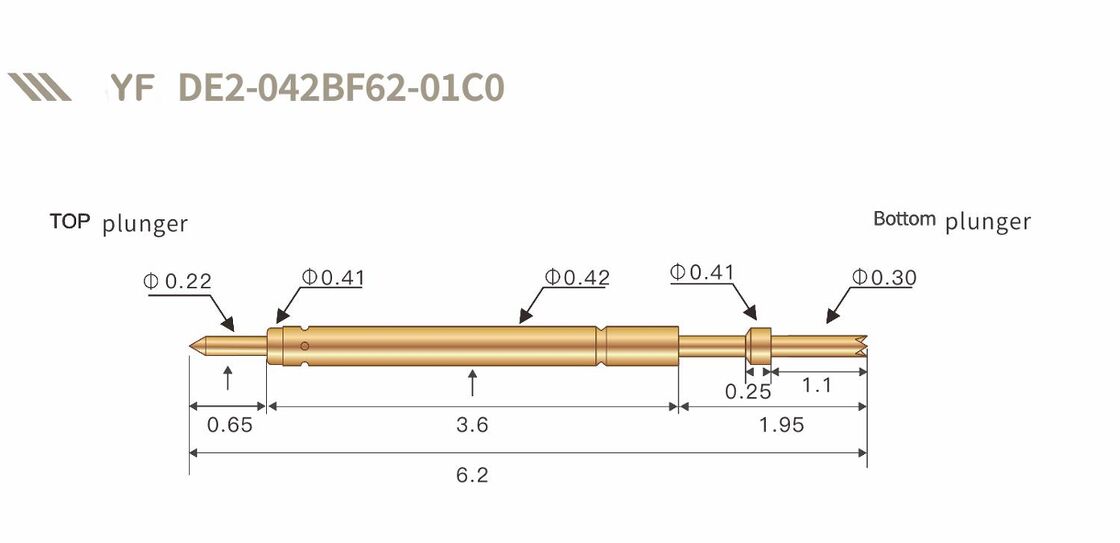

Electric Cable Switching Probe YF DE2-042BF62-01C0
High Efficiency BGA Testing Probes - Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications.
Key Product Features
  • High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission

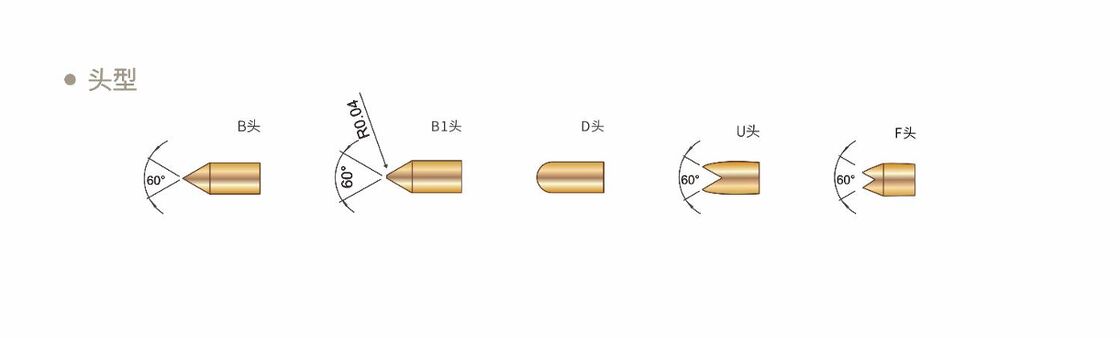

  • Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
  • Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
  • Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory
Production Specifications
Gold Plated High Durability Spring Test Probe 0
Product Images
Gold Plated High Durability Spring Test Probe 1
Gold Plated High Durability Spring Test Probe 2
Detailed Component Illustration
Gold Plated High Durability Spring Test Probe 3
Comparison of different test probe tip types and configurations
Customization Options
SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:
  • Custom diameters to match your specific requirements
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process
Gold Plated High Durability Spring Test Probe 4
Our probe manufacturing facility
Gold Plated High Durability Spring Test Probe 5
Quality control inspection
Gold Plated High Durability Spring Test Probe 6
Packaged probes ready for shipment
